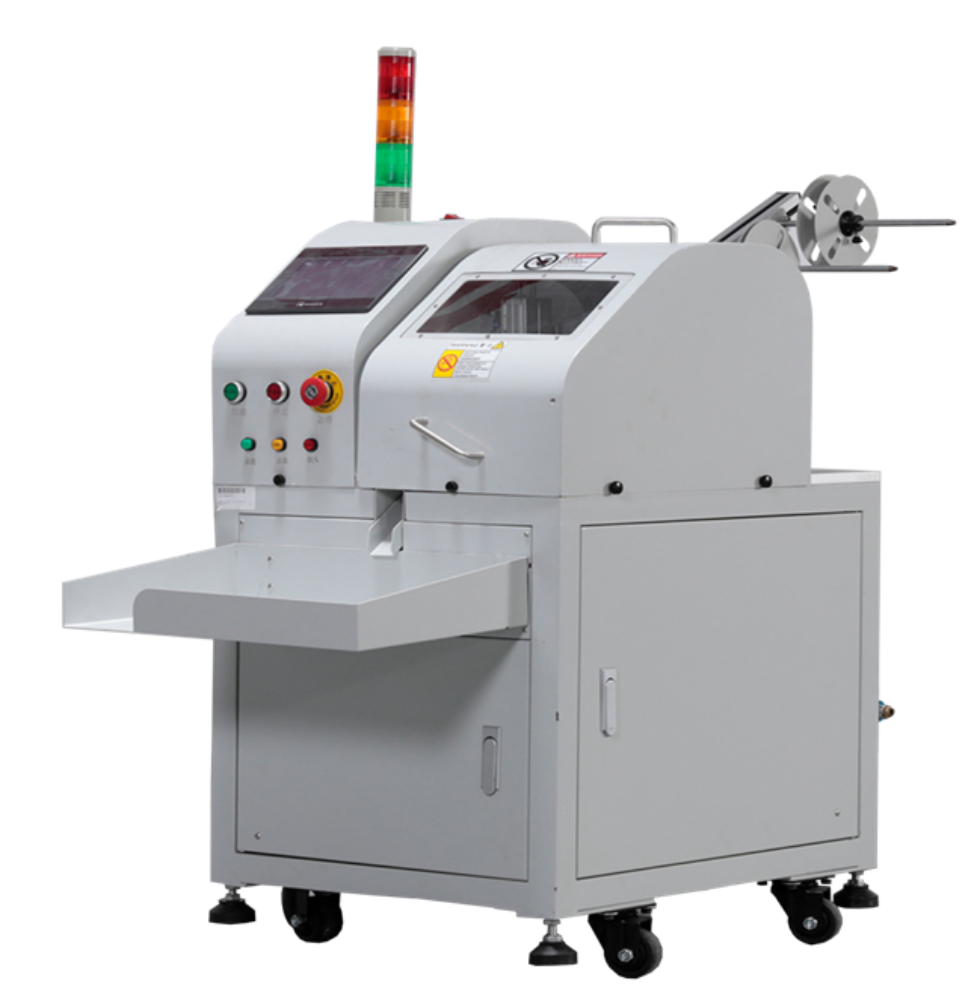

全自动弹性料折圈机

Automatic elastic material folding machine

Model：GYD-TXZQ02

用于 T 恤衫的弹性料折圈挂牌

Folded loop tags in elastic for T-shirts

功能特点 Features

采用先进自动追频声波系统，一次同时做三条，效率快，品质好

Adopting advanced automatic frequency chasing acoustic wave system, making three strips at a time simultaneously, fast efficiency and good quality.

针对化纤及尼龙弹性带，切口柔软顺滑

Soft and smooth cutting for synthetic fibre and nylon elastic belts.

机器内存多种生产功能

Multiple production functions in the machine memory

可以设定各种挂牌弹性料专用圈

Various kinds of special rings can be set for listed elastic materials

一人可同时操作多台设备

One person can operate several machines at the same time

技术参数 TECHNICAL PARAMETERS

机头型号 sewing head model / 电压 Voltage/ 功率 power 220V / 1100W

电压 Voltage/ 功率 power 气压 Air Pressure / 耗气量 gas consumption 6KG 30L/min

寸范围 Size Range宽 度 3-15MM 长 度 20-  100MM 对折长度 10-50MM

长*宽*高145*65*110 CM

产能效率(每小时) Production Capacity(per hour) 2040-3000pcs

1. 高效生产：
   • 高速度：能够快速、连续地对弹性布料进行折圈操作，相比传统的手工折圈或半自动设备，大大提高了生产效率。例如，在大规模服装生产中，可以在短时间内完成大量的折圈工作，满足订单需求。
   • 不间断作业：自动化的运行模式可以实现长时间的不间断工作，减少了因人工操作需要的休息、换班等时间间隔，进一步提高了生产的连贯性和效率。
2. 精准折圈：
   • 尺寸精度高：通过先进的机械结构和精准的控制系统，能够保证每一个折圈的尺寸高度一致。对于弹性料这种具有一定弹性变形特性的材料，精准的折圈可以确保服装的各个部位尺寸符合设计要求，提高服装的整体质量和美观度1。
   • 位置精准：可以准确地在服装的指定位置进行折圈，避免了人工操作可能出现的位置偏差，为后续的缝制等工艺提供了准确的基础，降低了次品率。
3. 操作简便：
   • 自动化程序控制：操作人员只需进行简单的参数设置和操作启动，机器即可按照预设的程序自动完成折圈工作。不需要复杂的操作技能和经验，降低了对操作人员的技术要求，节省了培训时间和成本。
   • 人机界面友好：通常配备有直观、易懂的人机交互界面，操作人员可以方便地查看设备的运行状态、调整参数等，操作更加便捷、高效。
4. 适用范围广：
   • 多种弹性布料适用：无论是氨纶、锦纶等常见的弹性纤维材料，还是其他具有弹性特性的复合面料，全自动弹性料折圈机都能够很好地适应，具有广泛的材料适用性3。
   • 多种服装款式适用：可应用于各种类型的弹性服装生产，如运动装、瑜伽服、泳衣、内衣等。能够满足不同款式服装对折圈工艺的要求，为服装设计师提供了更多的设计可能性。
5. 节省材料：
   • 精确裁剪：在折圈过程中，能够根据预设的尺寸进行精确的裁剪，避免了材料的浪费。特别是对于价格较高的弹性面料，节省材料可以显著降低生产成本。
   • 减少废品：精准的折圈操作和稳定的运行性能，减少了因折圈不准确或设备故障导致的废品产生，从而间接节省了材料
   • Efficient production:
     • High speed: It can quickly and continuously fold elastic fabrics, which greatly improves production efficiency compared to traditional manual folding or semi-automatic equipment. For example, in large-scale clothing production, a large number of folding jobs can be completed in a short time to meet order requirements.
     • Uninterrupted operation: The automated operation mode can achieve long-term uninterrupted work, reducing the time intervals such as rest and shift changes required by manual operations, and further improving the coherence and efficiency of production.
     2. Precise folding:
     • High dimensional accuracy: Through advanced mechanical structure and precise control system, the size of each folding ring can be guaranteed to be highly consistent. For elastic materials with certain elastic deformation characteristics, precise folding rings can ensure that the size of each part of the garment meets the design requirements, improving the overall quality and aesthetics of the garment 1.
     • Position accuracy: It can accurately fold at the specified position of the garment, avoiding the possible position deviation of manual operation, providing an accurate basis for subsequent sewing and other processes, and reducing the defective rate.
     3. Easy to operate:
     • Automated program control: The operator only needs to perform simple parameter setting and operation start, and the machine can automatically complete the folding work according to the preset program. No complex operation skills and experience are required, reducing the technical requirements for the operator and saving training time and cost.
     Friendly human-machine interface: Usually equipped with an intuitive and easy-to-understand human-machine interaction interface, the operator can easily check the running status of the equipment, adjust parameters, etc., and the operation is more convenient and efficient.
     4. Wide range of applications:
     • A variety of elastic fabrics are suitable: whether it is spandex, nylon and other common elastic fiber materials, or other composite fabrics with elastic characteristics, the fully automatic elastic material folding machine can be well adapted and has a wide range of material applicability.
     • Suitable for a variety of clothing styles: It can be applied to the production of various types of elastic clothing, such as sportswear, yoga clothing, swimwear, underwear, etc. It can meet the requirements of the half-folding process of different styles of clothing, providing more design possibilities for clothing designers.
     5. Save materials:
     • Precision cutting: During the folding process, it is possible to precisely cut according to the preset size, avoiding material waste. Especially for higher-priced elastic fabrics, saving materials can significantly reduce production costs.
     • Reduce waste: Precise folding operation and stable operating performance reduce the generation of waste due to inaccurate folding or equipment failure, thus indirectly saving materials
